Description
| TR No. |
Part No. |
Bend Angle “a” |
Effective Length “L” | |
| (mm) | (Inches) | |||
| J 650 | 650 | 80° | 79 | 3.11 |
| J 651 | 651 | 90° | 119 | 4.685 |
| J 658 | 5114 | 80° | 139.7 | 5.5 |

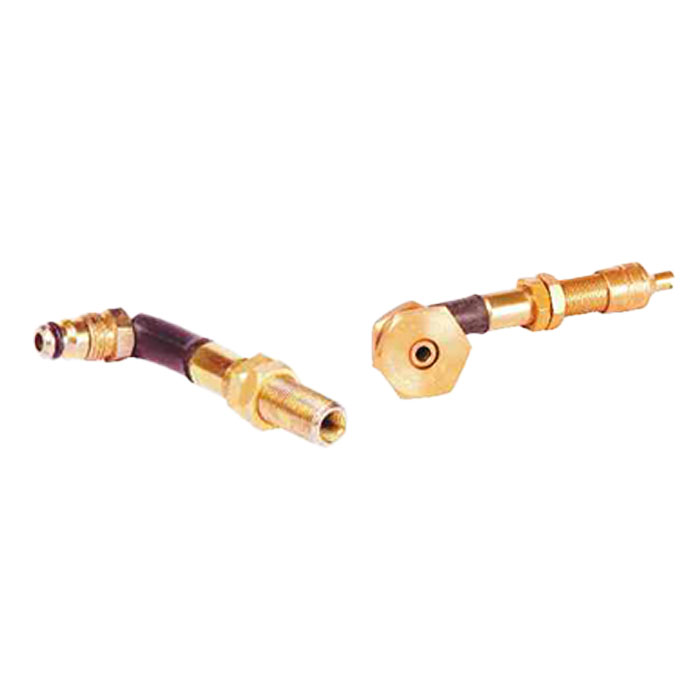

Tubeless Single Bend Swivel Valves
Tubeless Single Bend Swivel Valves
Note: Only the stem without spud is to be ordered add suffix – 198′ to the Part No. 650-198.
* Standard Accessories: 1449Tvalve core, 1450/4659 cap and 725-2 hex nut (2 nos.)
