Features

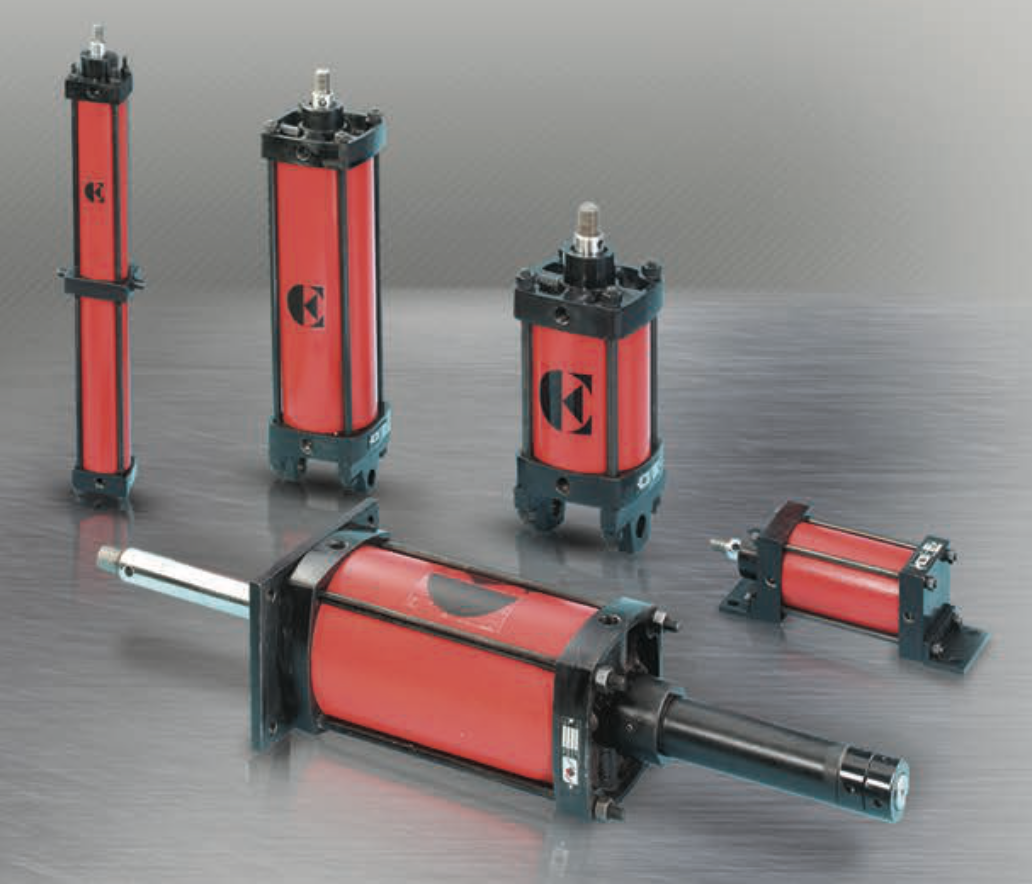

• Cylinders with cast iron end covers and ‘Round’ profile M.S. hard chrome plated tube
• Extremely rugged and heavy duty
• Ideal for use in tough industrial environments
• Large range of bore sizes and mountings
• Stroke length offered up to 3000 mm
• Up to 10 ton load capacity
• Options: Bellows, viton seals, hollow shaft, rod extension and rod threading
• Specials: Single-acting, stroke adjustable, double-ended, duplex and large port
