Features

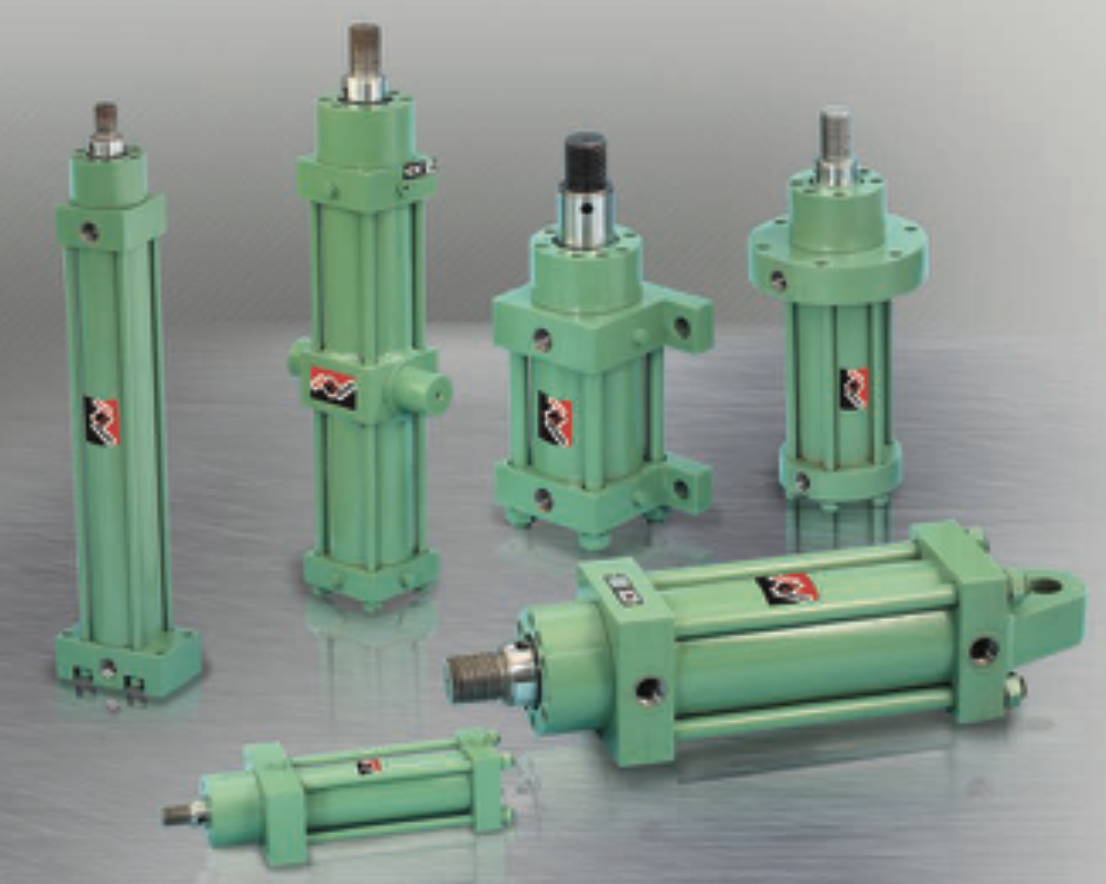

• Cylinders with M.S. end covers and ‘Round’ profile M.S. honed tube
• Long established design, proven ruggedness and reliability
• PTFE seals and bearing strips ensure perfect sealing and smooth movement
• Externally removable bolt-on cartridge assembly
• Stroke length offered up to 3500 mm
• Working pressure up to 200 bar
• Options: Bellows, rod extension and rod threading
• Specials: Bore above dia. 300 mm, LVDT, double-ended, stroke adjustable, large ports, working pressure up to 345 bar
