Features

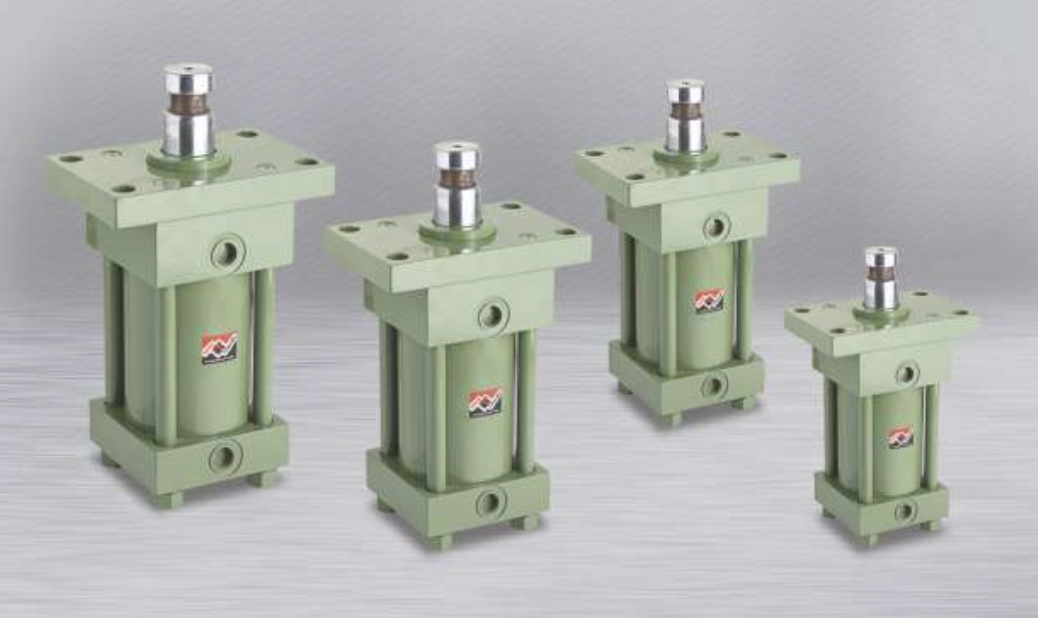

• Cylinders with M.S. end cover and round profile M.S. hone tube.

• Designed suit to die casting.

• PTFE seals and bearing strips ensure perfect sealing and smooth movement.

• Non cushion as a standard feature, cushion (optional).

• Stroke length offered up to 500 mm.

• Working pressure up to 140 bar.

• Viton seal as a standard feature.

• Piston rod is available with thread & coupler type version.

• Front and rear flange mounting are available.

• Construction : Tube – Mild steel seamless tube with ID honed and hard chrome plated.

• Piston rod – EN-8 hard chrome plated.
