Features

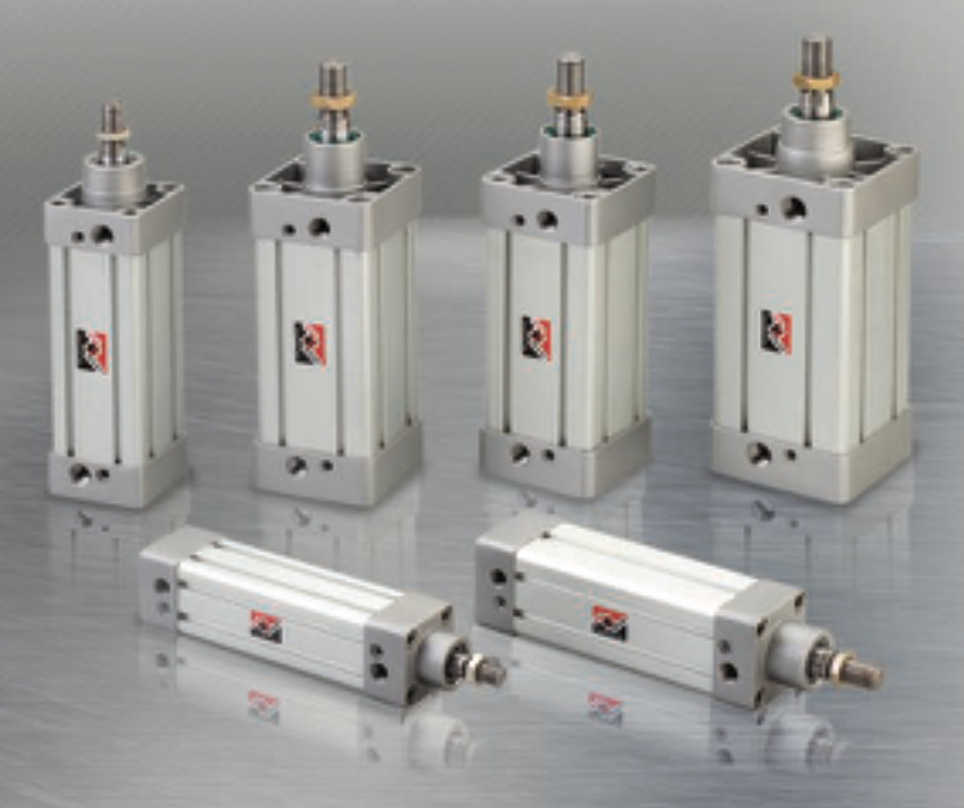

• Cylinders with aluminum casting end covers, aluminum casting piston and ‘Square’ profile aluminum tube
• High performance cylinders for modern demands
• Polyurethane seal ensures long life and high speed

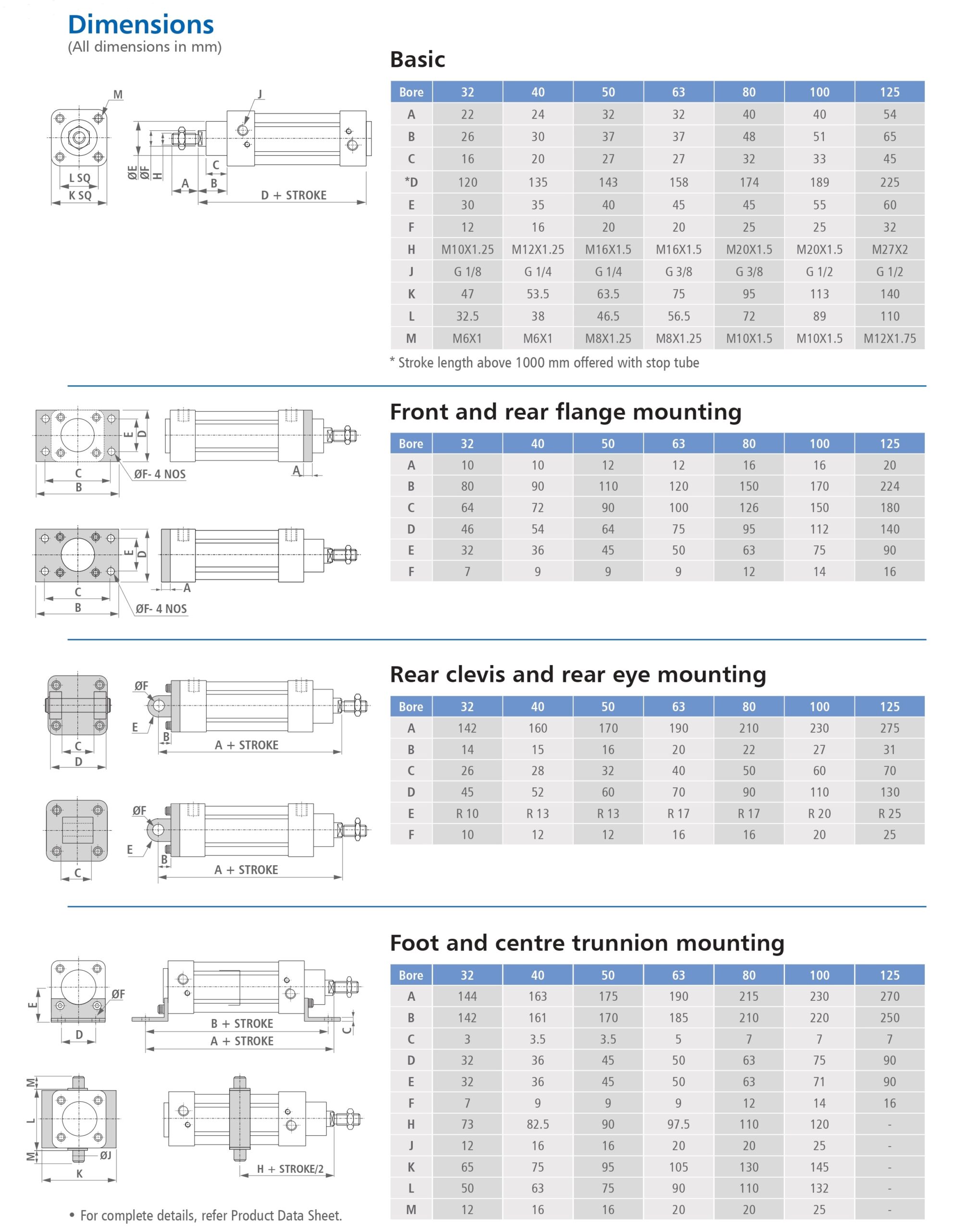

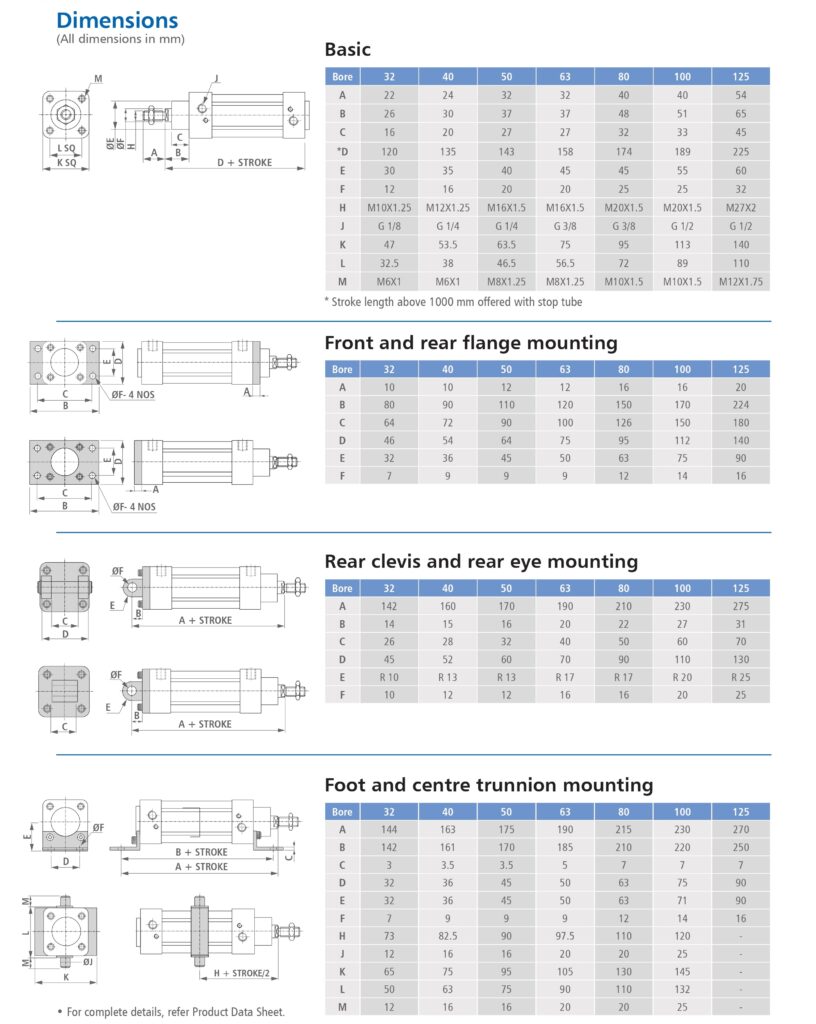

• Dimensions as per ISO 15552, VDMA 24562
• Modern type injection moulded reed switch
• 3 psi minimum pressure to move cylinder
• Options: Bellows, viton seals, hollow shaft, rod extension and rod threading
• Specials: Reed switch, single-acting, stroke adjustable, double-ended and duplex
