Features

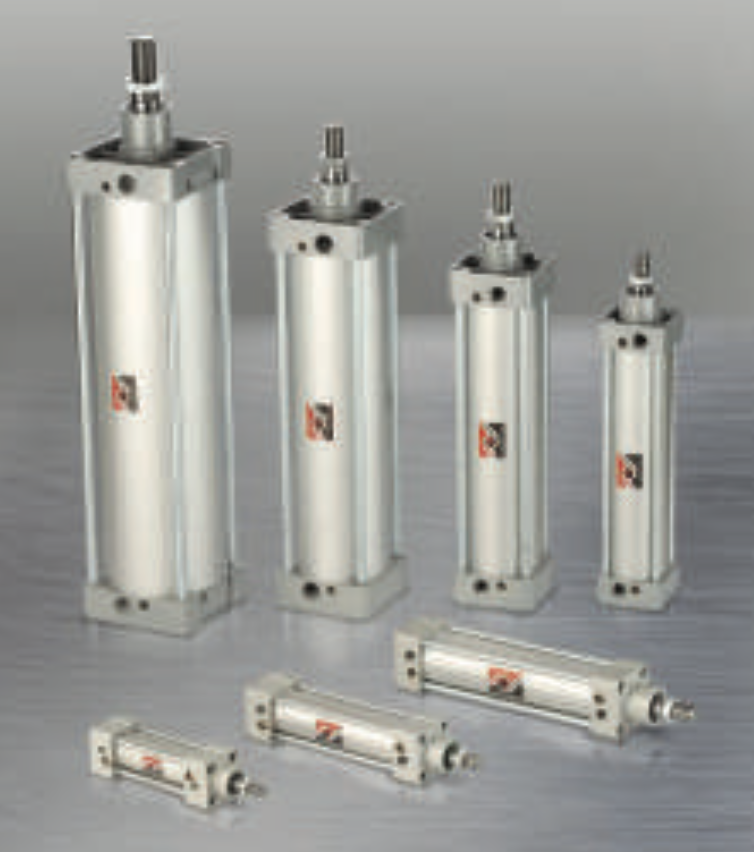

• Cylinders with aluminum casting end covers, aluminum casting piston and ‘Round’ profile aluminum tube
• High performance cylinders for modern demands

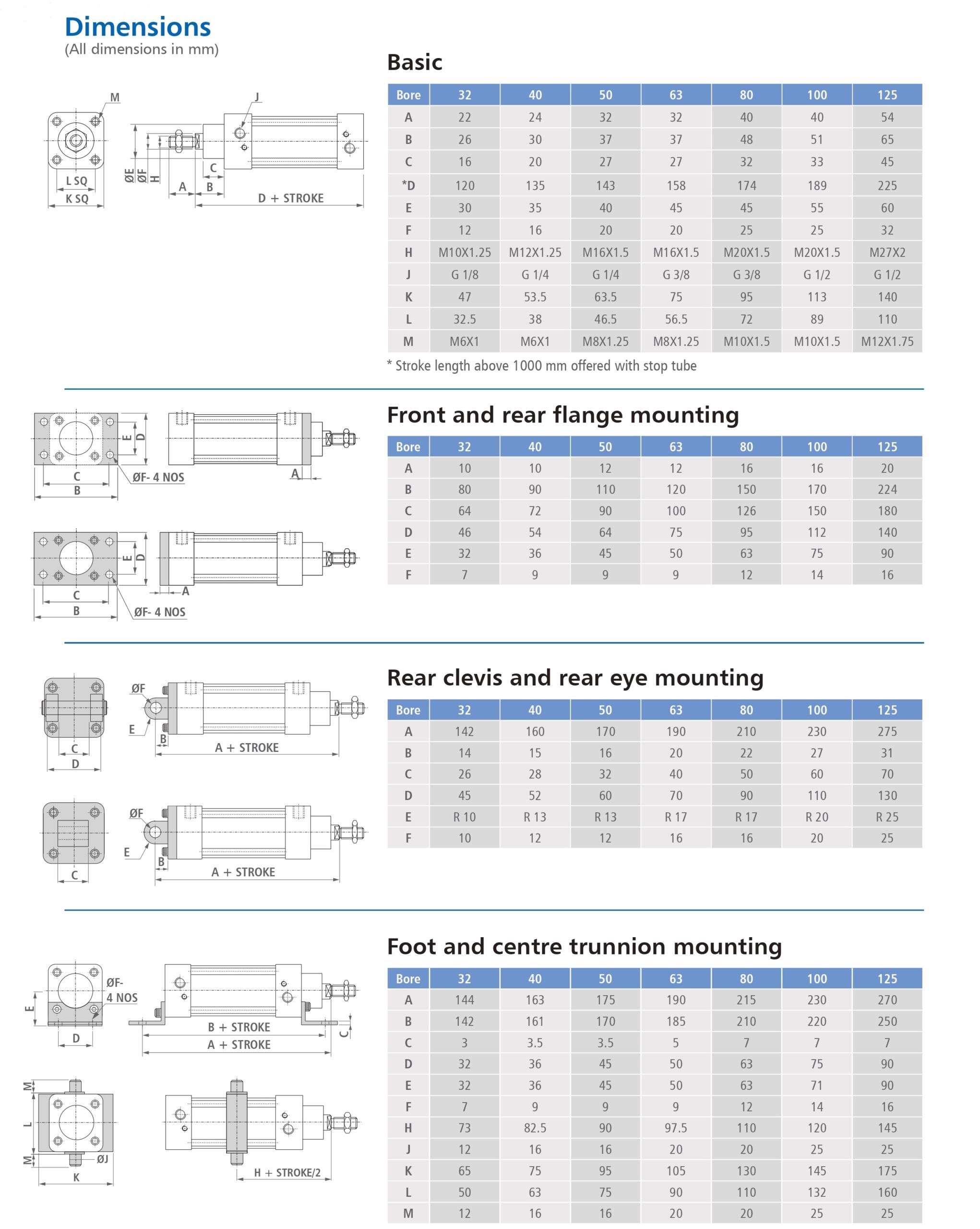

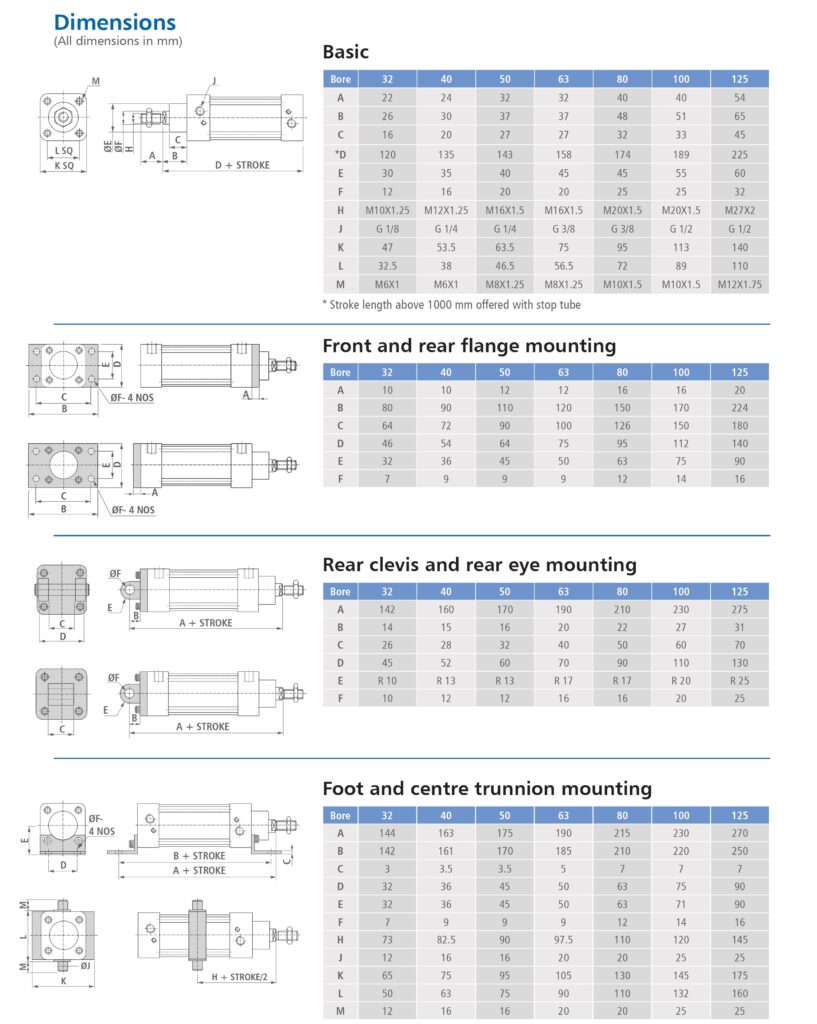

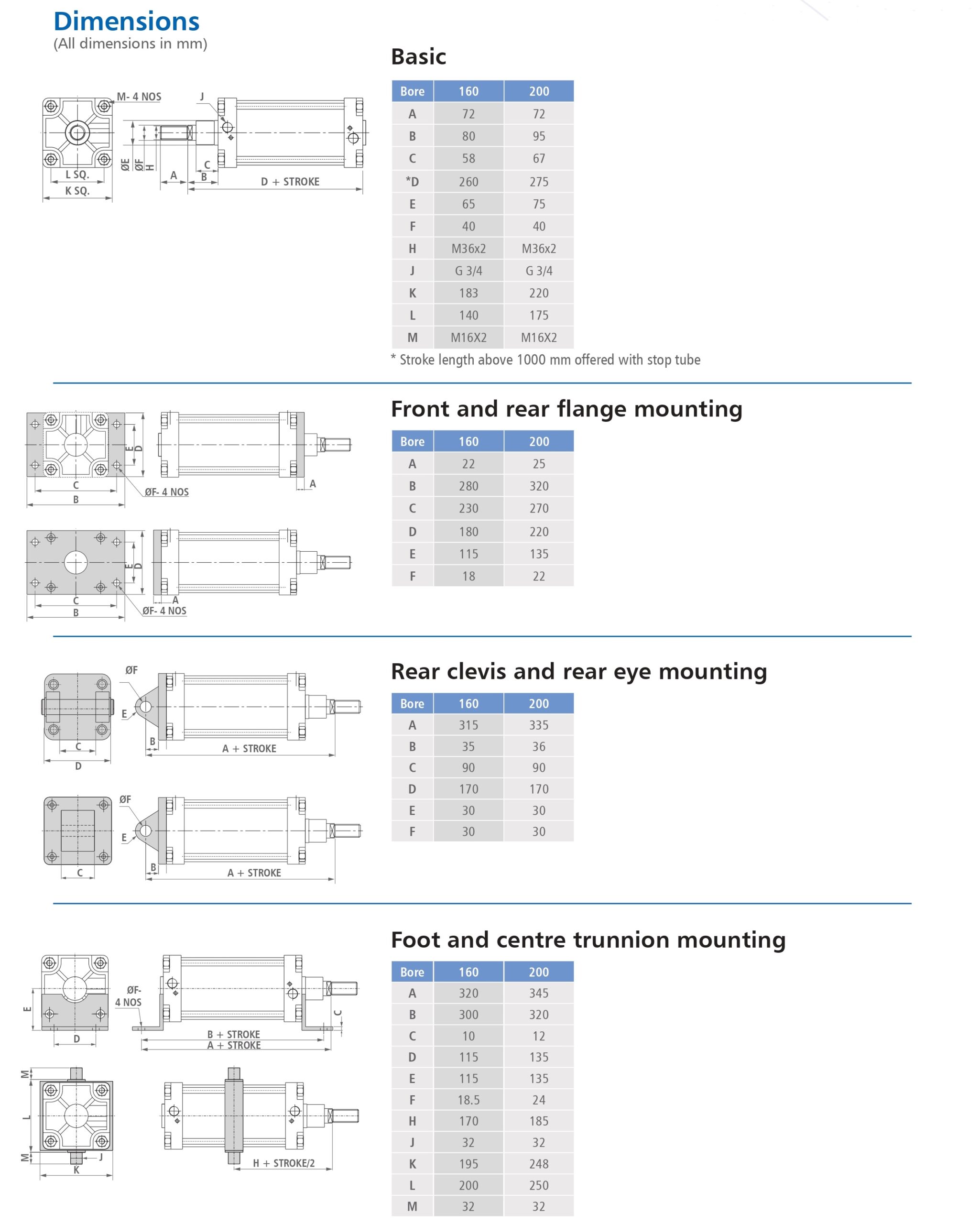

• Dimensions as per ISO 15552, VDMA 24562
• Polyurethane seals for long life and high speed
• Injection moulded reed switch with aluminium bracket
• 3 psi minimum pressure to move cylinder
• Options: Bellow, viton seals, hollow shaft, rod extension and rod threading
• Specials: Reed switch, single-acting, stroke adjustable, double-ended and duplex
